Group 3.725 - Chart 30

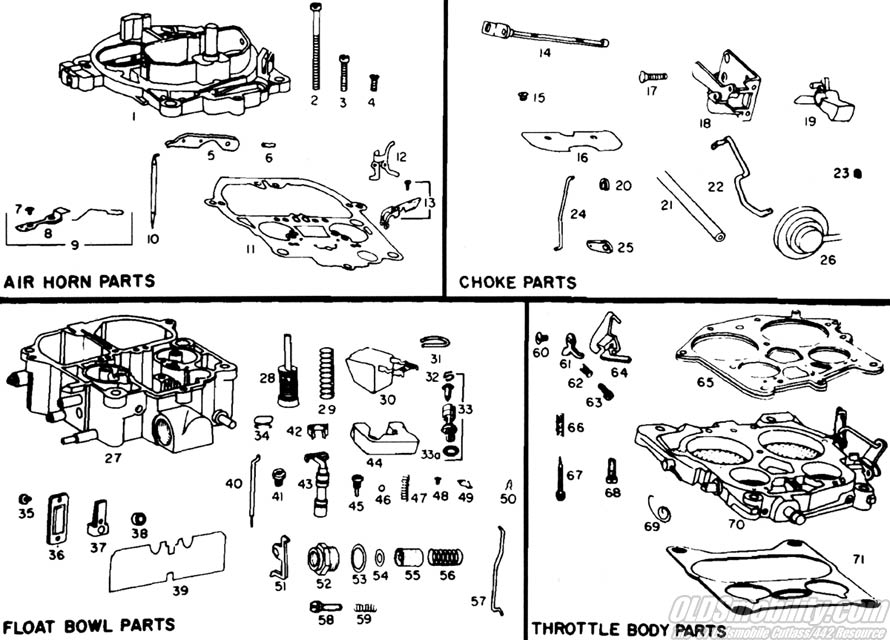

1967 ROCHESTER CARBURETOR MODEL 4MV FOR 400 (4BC) CUBIC INCH ENGINE
Exc. Climatic Combustion Control


(click here to view in higher resolution)

PARTS SHOWN ARE FOR IDENTIFICATION ONLY. CONSULT PARTS LIST FOR CORRECT PART NAME AND NUMBER.

  400" & 425"
STANDARD		 425"
TORONADO

APPLICATION
7027156 7027131 CARBURETOR No. (w/o A.I.R.)
7027157 7027130 CARBURETOR No. (A.I.R.)
7036689 7034552 REPLACEMENT PACKAGE No. (w/o A.I.R.)
7027157 7027130 REPLACEMENT PACKAGE No. (A.I.R.)
7034542 7034543 OVERHAUL KIT
7039112 7039112 MINOR REPAIR KIT
7034544 7034544 GASKET SET
7033059 7033059 ALTITUDE KIT
Illus. No. AIR HORN PARTS
1 7035321 7035321 Air Horn Assembly (w/o A.I.R.)
1 7035321 7035321 Air Horn Assembly (A.I.R.)
2 7029912 7029912 Screw—Air Horn
3 7014699 7014699 Screw—Air Horn
4 7031105 7031105 Screw—Air Horn
5 7026139 7026139 Lever—Pump Actuating
6 9423241 9423241 Roll Pin—Pump and Lockout Levers
7 7012548 7012548 Screw—Idle Vent Valve
8 7029993 7029993 Valve—Idle Vent
9 7051423 7031423 Idle Vent Valve Kit
10 7033655 7033655 Metering Rod—Secondary
11 7031374 7031374 Gasket—Air Horn
12 7031393 7031393 Lockout Lever—Air Valve
13 7034522 7034522 Secondary Metering Rod Holder Kit
  7035344 7035344 Air Valve Spring and Cam Kit
CHOKE PARTS
14 7036432 7036432 Choke Shaft and Valve Kit
15 7029866 7029866 Screw—Choke Valve
16 7032420 7032420 Choke Valve
17 7031925 7031925 Screw—Vacuum Break Control
18 7634541 7034541 Vacuum Break Control Bracket Assembly
19 7033977 7033977 Cam—Fast Idle
20 7032726 7032726 Clip—Choke Rod
21 7026339 7026339 Hose—Vacuum
22 7032789 7032789 Rod—Vacuum Break
23 7005109 7005109 Clip—Vacuum Break Rod
24 7632517 7033517 Rod—Choke
25 7031231 7031231 Lever—Intermediate Choke
26 7038238 7038238 Vacuum Break Control Assembly

FLOAT BOWL PARTS
27 7034537 7034537 Float Bowl Assembly (w/o A.I.R. )
27 7034538 7034538 Float Bowl Assembly (A.I.R.)
28 7034111 7034111 Pump Assembly
20 7004597 7604597 Spring—Pump Return
30 7033752 7033752 Float Assembly
31 7029856 7029856 Hinge Pin—Float
32 7033751 7033751 Pull Clip—Float Needle
33 7023897 7023897 Needle and Seat Assembly
33A 7033747 7033747 Gasket Needle Seat
34 7029862 7029862 Spring—Metering Rod—Primary
35 7020926 7020926 Screw—Cover Attaching
36 7029865 7029865 Cover—Idle Compensator
37 7033152 7033152 Idle Compensator Assembly
38 7027970 7027970 Gasket—Idle Compensator
39 7031365 7031365 Baffle Plate—Float Bowl
40 7031844 7031844 Metering Rod—Primary (w/o A.I.R.)
40 7031845 7031845 Metering Rod—Primary (A.I.R.)
41 7031971 7031971 Metering Jet—Primary
42 7034339 7634339 Retainer—Power Piston
43 7032979 7632979 Power Piston Assembly
44 7034361 7034361 Insert—Float Bowl
45 7029849 7029849 Retainer—Pump Discharge Ball
46 7002117 7002117 Ball—Pump Discharge
47 7029922 7029922 Spring—Power Piston
48 — — Screw—Diaphragm Retainer
49 — — Retainer—Float Needle Diaphragm
50 836159 836159 Clip—Pump Rod
51 — — Lockout Lever—Secondary
52 7040955 7040955 Filter Nut—Fuel Inlet
53 7032508 7032508 Gasket—Inlet Nut
54 — — Gasket—Filter
55 5651393 5651393 Filter—Fuel Inlet
56 7032732 7032732 Spring—Inlet Filter
57 7032716 7032716 Rod—Pump
58 7002121 7002121 Screw—Idle Stop
59 7003176 7003176 Spring—Idle Stop Screw

THROTTLE BODY PARTS
60 7010435 7010435 Screw—Cam and Fast Idle Levers
61 7043671 7043671 Lever—Fast Idle
62 7029900 7029900 Spring—Fast Idle Screw
63 7029899 7029899 Screw—Fast Idle
64 7033907 7033907 Lever—Cam Follower
65 7032787 7032787 Gasket—Throttle Body
66 7011479 7011479 Spring—Idle Needle
67 7013470 7013470 Needle—Idle Adjusting
68 7029891 7029891 Screw—Throttle Body
69 7031901 7031901 Spring—Cam Follower Lever
70 7033654 7033862 Throttle Body Assembly (w/o A.I.R.)
70 7033662 7033861 Throttle Body Assembly (A.I.R.)
71 394790 394790 Gasket—Flange

A.I.R. — AIR INJECTION REACTOR

ACCESSORIES
7027095 Manifold Stat Coil Assembly—425 Cu. In.—Toronado
7027094 Manifold Stat Coil Assembly—AH Other
7027290 Intake Air Bleed Valve Assembly—A.I.R.—Toronado
7027291 Intake Air Bleed Valve Assembly—All Other
